Description

Fits

Year	Make	Model	Engine
2017-2019	Ford	F-Series Superduty 2WD/4WD	6.7L Powerstroke

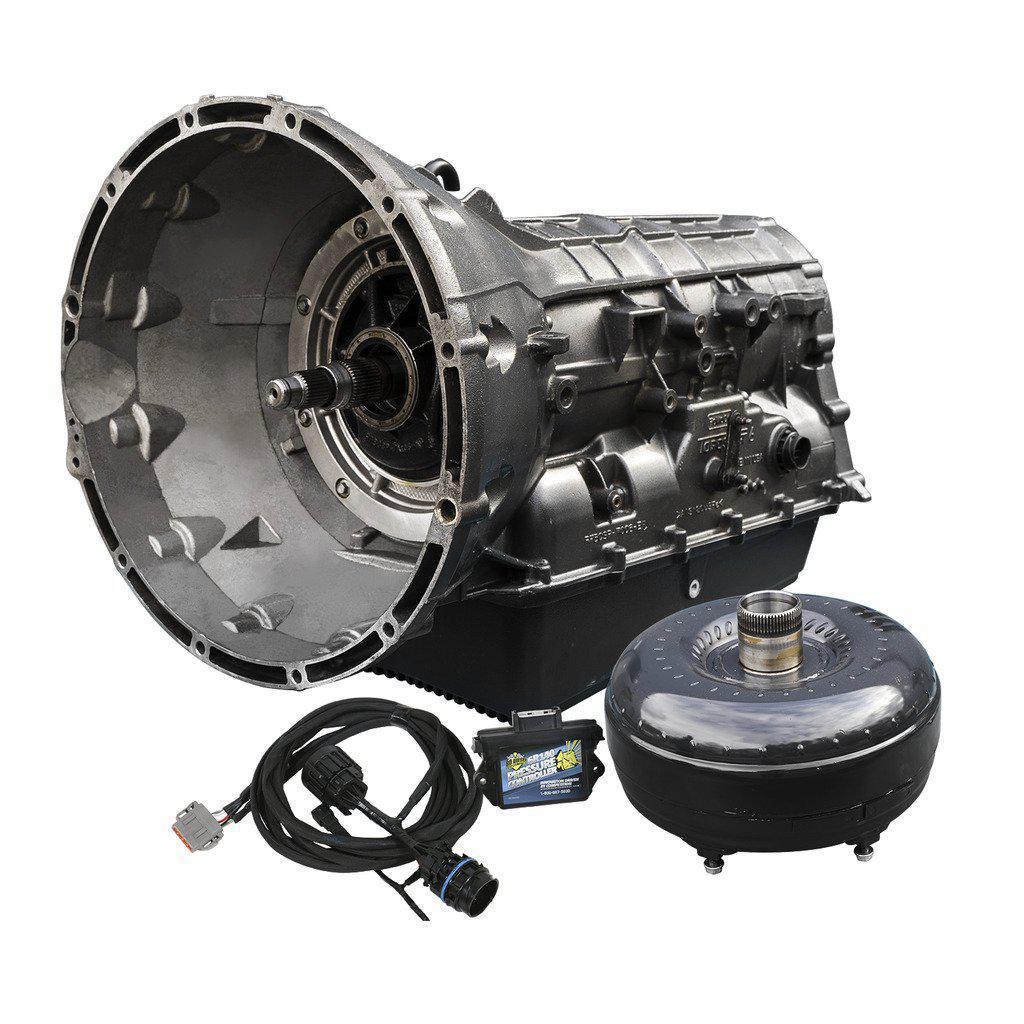

The Roadmaster 6R140 transmission is BD's base transmission for stock, non-modified trucks that are looking to increase reliability and longevity. This transmission comes with OEM clutch counts, an OEM valve body, and BD's Deep Transmission Pan. Every one of our 6R140 Roadmaster Transmission Packages includes a ProForce Torque Converter and a BD Pressure Controller.

Part Number: 1064534SS

Features

Transmission:

• Brand new OEM valve body
• BD Deep Sump Pan
• Stock Clutch Counts

Pressure Controller:

• 76% more clutch holding power
• Delivers up to 300psi line pressure at WOT
• Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
• Does not create parasitic load or extra heat when inactive

Torque Converter:

• Ideal replacement for tired stock torque converter
• Great for street and towing applications
• Dual surface clutch assembly
• Machined steel reaction ring replaces flexible factory stamping
• Furnace-brazed pump and turbine fins
• Fully remanufactured for long service life

Notes

• Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
• Transmission is compatible with both 2wd and 4wd applications
• 2WD applications require the yoke adapter and rear mount bracket be transferred over during installation

Installation

• 12 Hours (Requires Ford Scanner)
• Install Click - Here
• Pressure Controller - Click Here

Warranty

Parts Only - No Race abuse is covered.

• 24 Months
